RFID
RFID
We are the authorized Sales agent of Active Network - USA for RFID Reader for TCAS Project by South Central Railway in India.
Product

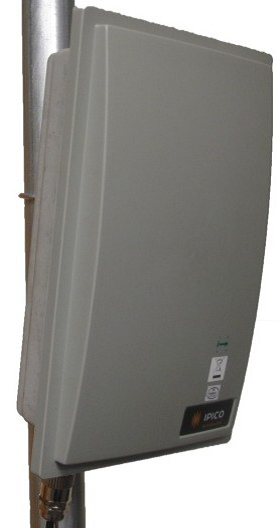

- IP3222- IP-X UHF Single Antenna Reader
- IP5011-1 IP-X UHF Kit OEM Reader, With Flat Panel Antenna
Description
The UHF Single Antenna Reader can be configured in a wide range of power and
frequency settings, and complies with ETSI (Europe) and FCC (USA) standards. The power level is factory set from 0.1 W to 2 W ERP, and the frequency from 860 to 960 MHz, fixed or hopping. This reader can read both Read-only and Read/Write tags, can read all the data pages transmitted by tags operating in “TTO**” mode, and perform all read, write, and control functions associated with the operation of Read/Write tags.
Key Features
- Complies worldwide i.e USA, European, China, Australian and RSA
- UHF band (860 – 960 MHz) up to 2 W ERP
- Multiple reader deployment in confined space can operate asynchronous
- Integrated antenna/radio/communication design
- Read/Write, compatible with EM4122, 4222, 4444 and 4445 chip sets
- Long range (7 m+ depending on TX power and tag type)
- Robust anti-collision protocol (up to 240 tags read simultaneously)
- High tag read rate – up to 200 tags/sec in multi-read application
- Standard outputs: Ethernet /RS422/ RS232 and Wiegand
- Real time clock (RTC)
- IP-65 enclosure and connectors
- Software, hardware and diagnostics control
- Built-in test and diagnostics
- Status LED’s and Buzzer
- Buzzer and LEDs under software control
- Tag ID codes are CRC-validated.
- User Data –R/W Tags – can be CCITT CRC validated.
- R/W up to 14 pages (64 bits each) of User Data.
- Read up to 14 page of TTO** data.
- Several operating modes and selectable message formats
- Code repeats are suppressed if operated in “Event” mode (only one code per tag is sent to the host)
- Fast deployment
- Reverse polarity and DC overvoltage protected up to 70 VDC.
- ISO 18000-6D “TOTAL” compliant.
Applications
- Proximity range applications, e.g. Access Control
- Electronic Vehicle tolling
- People and Asset registration and tracking
- Supply chain management Industrial control
